Place of Origin:
Guangzhou, Guangdong, China
브랜드 이름:
JETEX
인증:
ISO quality system certification/CRAA
Model Number:
AHS series
| Attribute | Value |
|---|---|
| Air volume | 2000m³/h-300000m³/h |
| Function | Cooling, heating, humidifying, dehumidifying, filtering, purifying and sterilizing |
| Panel material | Double-layer insulation, color steel sheet, galvanized steel sheet, stainless steel sheet (Optional) |
| Name | Modular Air Handling Units |
| Fan | Volute/Non-volute Fan /EC fan options available |
| Cooling capacity | 12kw-5000kw |
| Insulated material | Polyurethane foam, thickness (50mm) |

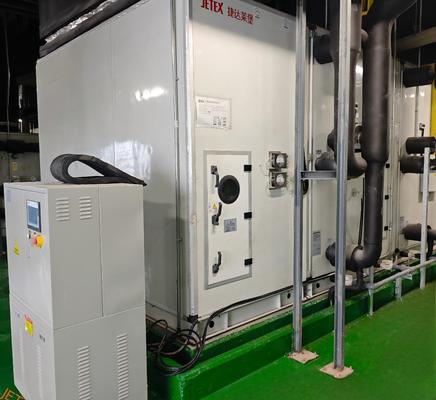

The layout of common functional sections of AHU used in biopharmaceutical industry is similar to that in electronic industry. The special features are:
Some air-conditioned rooms require low relative humidity. Dehumidification devices are usually equipped in AHU. The more commonly used dehumidification includes freezing dehumidification and runner dehumidification. The general functional sections are arranged as follows: fresh air inlet section + initial effect filter section + (front) surface cooling section + middle section + runner dehumidifier + return air section + (rear) surface cooling section + heating section + fan section + medium effect filter section + air supply section.
| Model NO. | Jetex AHS series |
|---|---|
| Type | Modular air Handling Unit/air handler |
| Frame structure | Aluminum alloy |
| Air pipe Material | Galvanized |
| Mounting | Vertical or ceiling mounted |
| Operating Voltage | 380/400 VAC |
| Air volume | 2000~100000 m³/h |
| Lifetime | About 15 years |
| Fan Type | EC fan /belt drive volute fan |
| Panel sheet material | Colored steel sheet and galvanized sheet 0.5mm |
| Insulated polyurethane foam thickness | 50mm |
| Functions | Cooling, heating, humidifying, dehumidifying, filtering, purifying and sterilizing, ventilation etc. |
| Power supply | 380V/50HZ/3P |
| Cooling capacity | 12kw-5000kw |
| Numbers of row | 2 rows/6 rows /8 rows |
