원래 장소:
광저우, Panyu
브랜드 이름:
JETEX
인증:
ISO 9001:2015 Certification/CRAA
모델 번호:
5W AHU15-600
| Attribute | Value |
|---|---|
| Insulation | polyurethane foaming fiiling |
| Belt pulley | Taper Bushing Pulleys |
| Function | Dehumidification, Absorb Moisture, Cooling, Heating, Ventilation,etc. |
| Packaging | Wooden Pallet With Outer Film Wrapping |
| Frame | Thermal Break Aluminum Alloy Frame Structure |
| Air Volume | 1500m³/h-60000m³/h |
| Mounting | Horizontal/Vertical/Ceiling Mounted |

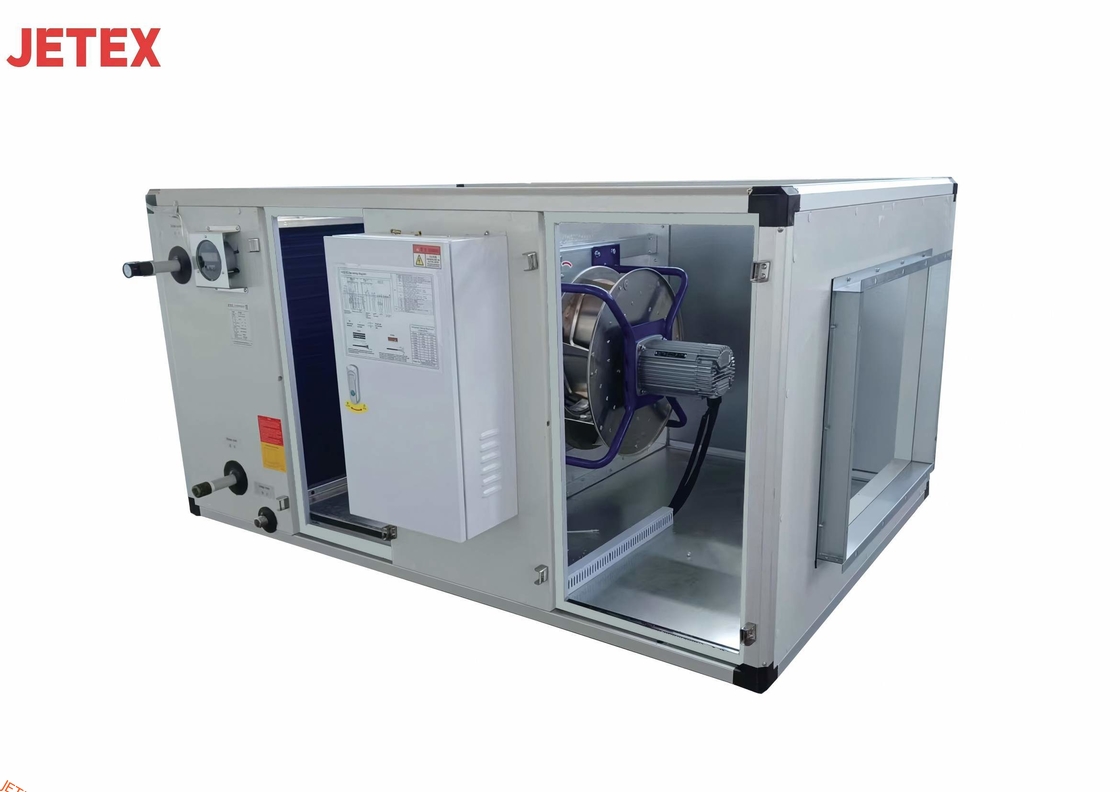

| Products Name | Air Handling Unit with EC fan |

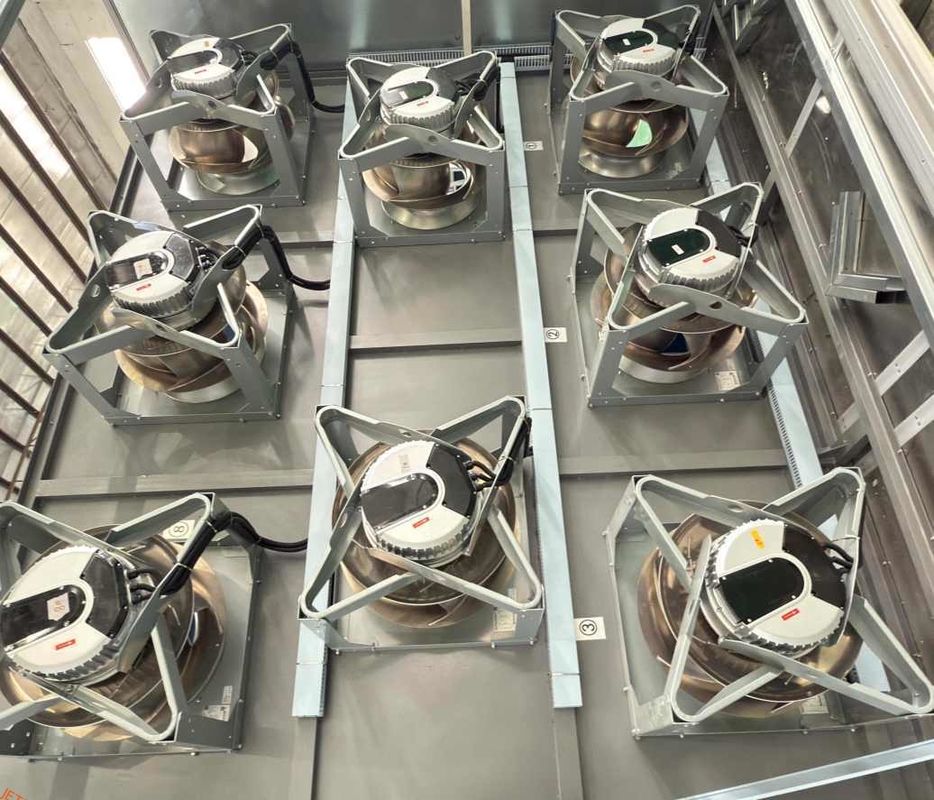

Air Handling Unit (AHU) with an EC fan uses a high-efficiency, brushless DC motor with integrated electronics for precise, variable speed control, leading to significant energy savings, reduced noise, and a more compact design compared to traditional AC motor-driven AHUs. These fans can match airflow to actual system needs, avoiding energy-wasting constant operation at maximum speed, and often offer features like plug-and-play installation and integrated monitoring for improved efficiency and maintenance.
Key Advantages of EC Fans in AHUs
Energy Efficiency:By continuously adjusting fan speed, EC fans only use the energy required for the current airflow demands, leading to substantial energy saving
Precise Airflow Control:
Allows for fine-tuned control of airflow and static pressure within the AHU to precisely match system requirements.
Improved Noise Operation
Compact Design:The integration of the motor and control electronics into a single unit creates a more compact design, saving space within the AHU
Plug-and-Play Installation:
Enhanced Monitoring:
Integrated electronics allow for remote monitoring and the ability to set alarms for fan failures, preventing system inefficiencies.
Brand Name: JETEX
Model Number: 5W AHU15-600
Packaging: Wooden Pallet With Outer Film Wrapping
Delivery Time: 25-30 Days
Payment Terms: 30% deposit required for customized products, with 70% balance payable prior to shipment
