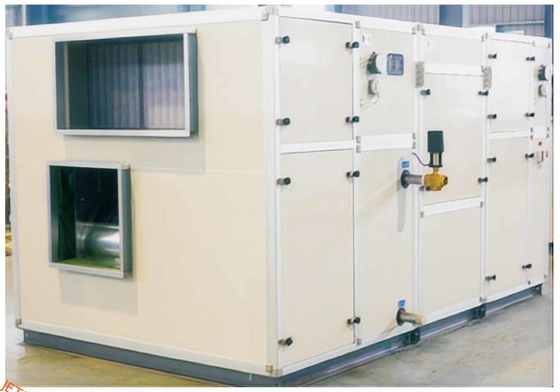

Name: Heat Recovery Fresh Air Handling Unit Equipment Factory Price
Brand: GUANGZHOU JETEX-LLOYD'S MACHINERY LTD
SKU: AHE 시리즈
Availability: InStock

집 > 상품 > 열회수 장치 >

Heat Recovery Fresh Air Handling Unit Equipment Factory Price

Heat Recovery Unit factory price

Fresh Air Handling Unit equipment

Heat Recovery Ventilation system

원래 장소:

광저우, 중국 광동

브랜드 이름:

JETEX-LLOYD'S

인증:

ISO quality system certification,CRAA

모델 번호:

AHE 시리즈

문의하기

견적 요청

Heat Recovery Fresh Air Handling Unit Equipment Factory Price

제품 상세정보

공기량:

1500m3/h~40000m3/h

기능:

효율적이고 에너지 절약, 난방, 가습, 제습 및 소독

패널 재질:

이중단열판, 컬러강판, 아연도금강판, 스테인레스강판

이름:

열 회수 기능이 있는 공기 조화 장치

제품 기능:

효율성과 에너지 절약

제품명:

맞춤형 청정 공기 처리기, 수술실용 공기 조화기

강조하다:

Heat Recovery Unit factory price

Fresh Air Handling Unit equipment

Heat Recovery Ventilation system

지불과 운송 용어

최소 주문 수량

하나

가격

협상 가능

포장 세부 사항

특수 포장 필름

배달 시간

35 평일

지불 조건

은행 송금,T/T

공급 능력

한 달에 100 대

HVAC Fresh Air Handling Unit With Heat Recovery Wheel

최고의 가격을 얻으십시오

Optimal Performance Best Heat Recovery Air Handling Unit For Factory And Hospital Ceiling Mounted/Floor Installation

최고의 가격을 얻으십시오

20-350kw Cooling Capacity Heat Recovery Unit In Ahu For HVAC System

최고의 가격을 얻으십시오

China Energy-Saving Fresh Air Heat Recovery Air Handling Unit AHU Factory

최고의 가격을 얻으십시오

문의하기

＋86 18028849848

jetex@21cn.com

86-20-34550929

지금 접촉하세요

제품 설명

Heat Recovery Fresh Air Handling Unit Equipment Factory Price

ISO-certified Heat Recovery Air Handling Unit manufacturer from China, featuring environmental friendliness and energy-saving design. An air handling unit (AHU) with heat recovery is a core HVAC (Heating, Ventilation, and Air Conditioning) device that integrates heat recovery functionality into a standard air handling unit.

Key Working Principles

A heat-recovery unit re-uses the air from the building to warm or cool new fresh air. A typical unit features two fans, one to reuse the building air (Return Fan), and the other to bring in fresh air (Supply Fan). What makes a heat recovery unit unique is the heat-exchange core.

The core transfers heat from the outgoing stream to the incoming stream in the same way that the radiator in your car transfers heat from the engine's coolant to the outside air. It's composed of a series of narrow alternating passages through which incoming and outgoing air streams flow. As the streams of air move through, heat is transferred from the warm side of each passage to the cold, while the airstreams never mix. Westaire can implement different types of heat-exchangers which best accommodate your air temperature requirements.

JETEX Heat Recovery Air Handling Unit

Our company has developed an innovative heat recovery air handling unit that uses water as the thermal transfer medium. By employing specialized wet-film fillers, the unit facilitates cross-counterflow heat and moisture exchange between spray water and indoor exhaust air in an open-system total heat recovery process.

During operation, the indoor exhaust air and outdoor fresh air remain entirely separated, completely eliminating air cross-contamination to ensure clean and healthy air quality. After open-system recovery, the air enters a sealed system, maintaining zero contact between exhaust and fresh air--100% cross-contamination prevention for guaranteed air purity.

Key Features

High Efficiency & Energy Savings
Easy installation, can choose a multi-functional packed unit with exhaust air, heat recovery, fresh air functions or a single-function machine, to meet the usage needs of different environments such as new construction projects and renovation projects.
Enhanced Heat Exchange Performance - By reducing airflow duration and volume through the heat exchanger, dust accumulation on its surface is minimized, indirectly improving thermal exchange efficiency.

Air Handling Unit with Heat Recovery (HRAHU)

Item	Key Details
Core Function	Heat/cold transfer between exhaust air and fresh air; energy-saving ventilation
Heat Exchanger Type	Common: Plate heat exchanger, rotary heat exchanger (enthalpy wheel), run-around coil
Heat Recovery Efficiency	60%-90% (varies by exchanger type; plate type: 60%-75%, rotary type: 75%-90%)
Air Volume Range	500-100,000 m³/h (suitable for small offices to large industrial plants)
Operating Temperature	-20°C to 45°C (outdoor air temperature; low-temperature models available for cold regions)
Air Quality Guarantee	Independent air streams (no cross-contamination); optional filters (G3-H14 grade)
Control Features	Automatic temperature sensing, heat recovery switch, airflow regulation
Key Materials	Cabinet: Galvanized steel (anti-corrosion); Heat exchanger: Aluminum alloy/Stainless steel
Typical Energy Saving	15%-40% reduction in HVAC operating energy consumption

Our Certificates

Our Exhibitions

For information about Heat Recovery Fresh Air Handling Unit, please contact US and get talented air solutions!
